Aplicaciones
Estándares

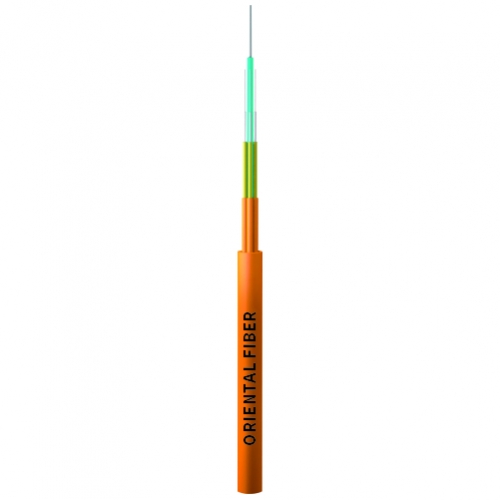

Dibujo Estructura
Parámetros técnicos
Modelo de cable |
Diámetro del cable (mm) |
Peso del cable |
Resistencia a Largo/Corto Plazo (N) |
Resistencia Largo/Corto Plazo (N/100mm) |
Radio de curvatura Dinámica estática (mm) |
|
Chaqueta de PVC |
Chaqueta LSZH |
|||||
04 |
7.4±0.5 |
50 |
56 |
130/440 |
300/1000 |
20D/10D |
06 |
8.4±0.5 |
66 |
74 |
200/660 |
300/1000 |
20D/10D |
08 |
9.8±0.5 |
91 |
101 |
200/660 |
300/1000 |
20D/10D |
12 |
12.4±0.5 |
140 |
155 |
200/660 |
300/1000 |
20D/10D |
24 |
14.4±0.5 |
181 |
201 |
400/1320 |
300/1000 |
20D/10D |
36 |
16.4±0.5 |
208 |
255 |
400/1320 |
300/1000 |
20D/10D |
48 |
19±0.5 |
280 |
344 |
400/1320 |
300/1000 |
20D/10D |
Características ópticas
Tipo de fibra |
Atenuación |
OFL |
Ancho de banda |
Longitud de enlace |
Radio de |
|||
Condición |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
Valor típico |
Valor máximo |
Valor típico |
Valor máximo |
|||||
Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
G652D |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
16 |
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
